Extend C Band 4 Port Linear Polarization Duplexer

【Product introduction】:

Contains OMT and 2 duplexers.

Features: wide working bandwidth, low insertion loss, great rejection, high Power Capacity.

Function: Linear polarization T/R mode:  Same/different frequency;1/2 polarization Circular polarization T/R mode:  Same/different frequency; LHCP/RHCP polarization (by adding circular polarizer).

【Technical indicators】:

1. Working frequency: RX: 3.40~4.80GHz; TX: 5.85~7.025GHz

2. VSWR: 1.25:1 MAX

3. Insertion loss: 0.20dB MAX

4. Isolation: 95dB MIN

5. cross polarization: 40dB MIN

6. Power Capacity: 5KW(CW)

7. Interface: WR229(RX), WR137(TX)

8. Structure:

Extend C Band 4 Port Linear Polarization Duplexer

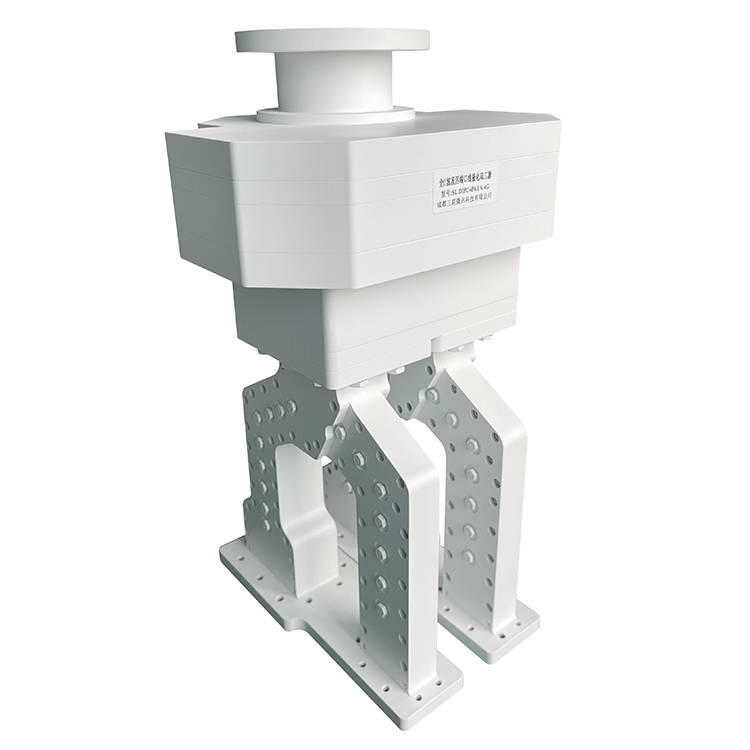

(a)

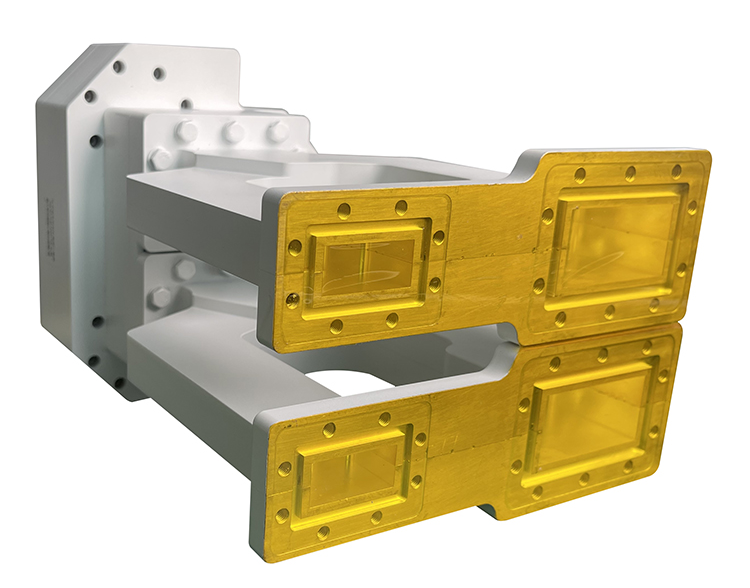

(b)
