C band linear polarization component

【Product introduction】:

Including OMT, duplexer.

Features: High power Capacity, great isolation.

Function: Transceiver duplex, dual-mode transmission

【Technical indicators】:

1. Working frequency: RX: 4.50~4.80GHz; TX:6.725~7.025GHz

2. VSWR: 1.25:1 MAX

3. Insertion loss: RX: 0.25dB MAX, TX: 0.15dB MAX

4. cross polarization: 35.0dB MIN

5. Isolation: TX/RX: 90dB MIN

6. Power Capacity: 5KW

7. Air tightness requirements: 5psig

8. Interface: WR229 (RX);WR137(TX)

9. Structure:

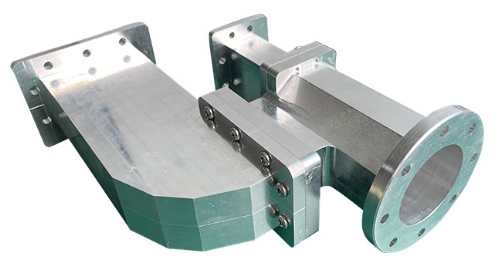

C band linear polarization component

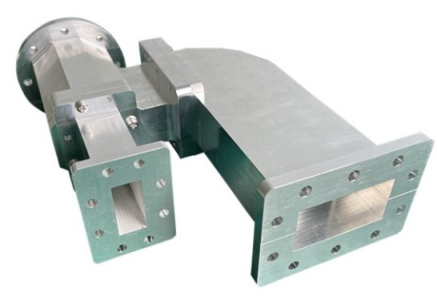

C band linear polarization component
