Ku Band U/SMA Type Waveguide Rotary Joint

Ku Band U-SMA Type Waveguide Rotary Joint.pdf

Ku Band U/SMA Type Waveguide Rotary Joint

【Product introduction】:

Features: low insertion loss, stable structure.

【Technical indicators】:

1. Working frequency: 14.5～16.5GHz

2. VSWR: 1.2:1 MAX

3. Insertion loss: 0.3dB MAX

4. Operating temperature: -40℃～+70℃

5. Interface: WR62 Non-standard flange/SMA-K, average power: 70W

6. Structure:

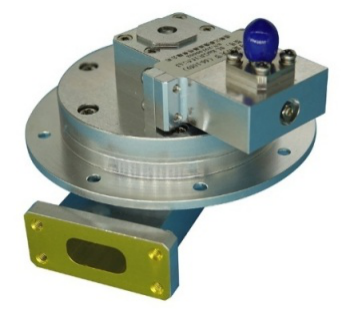

Ku Band U/SMA Type Waveguide Rotary Joint

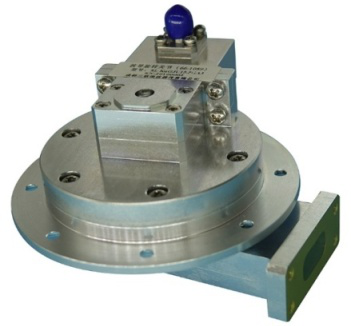

Ku Band U/SMA Type Waveguide Rotary Joint
