Ku Band DBS 4 Port Linear Polarization Duplexer
Ku Band DBS 4 Port Linear Polarization Duplexer.pdf

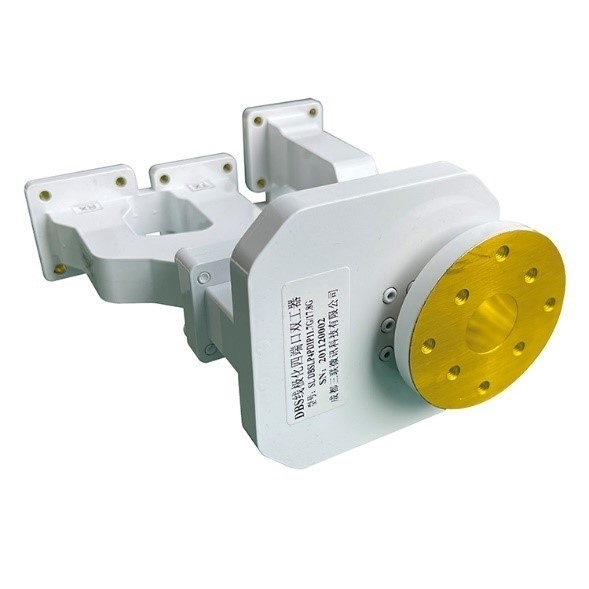

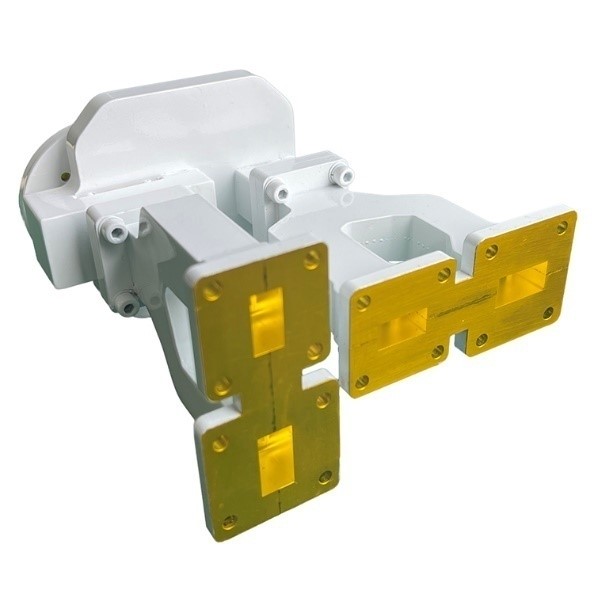

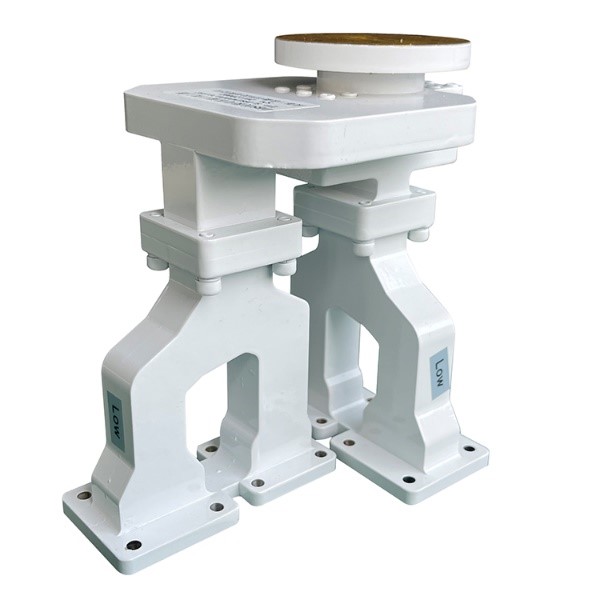

Ku Band DBS 4 Port Linear Polarization Duplexer
【Product introduction】:
Contains OMT and 2 duplexers. Features: High power capacity, great rejection.
【Technical indicators】:
1. Working frequency: RX:10.70~12.75GHz, TX:17.30~18.4GHz
2. VSWR: 1.20:1 MAX
3. Insertion loss: 0.50dB MAX(RX), 0.35dB MAX(TX)
4. Isolation: TX/RX: 100dB MIN
RX/TX: 90dB MIN
OMT cross isolation: 35dB MIN
5. Power Capacity: 1000W(TX)
6. Interface: Common port: Φ19.05 circular waveguide; TX: WR62; RX: WR75

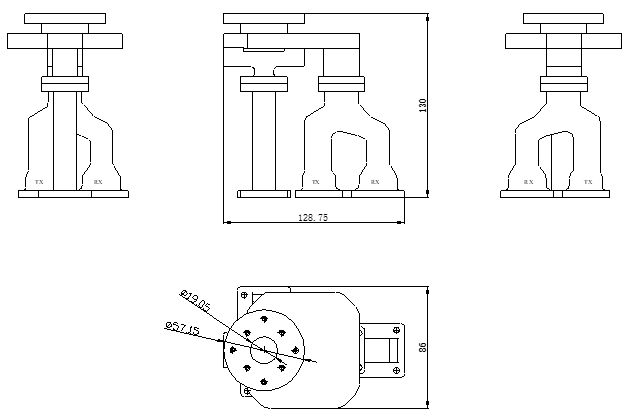

7. Structure:
