K/Ka band different frequency OMT

K-Ka band different frequency OMT.pdf

K/Ka band different frequency OMT

【Product introduction】:

Features: low insertion loss, great isolation.

【Technical indicators】:

1.         Working frequency: RX: 17.7～21.2GHz

          TX: 29.0～31.0GHz

2.         VSWR: 1.15:1 MAX

3.         Insertion loss: 0.15dB MAX

4.         Isolation: 35dB MIN

5.         Interface: Common port: circular waveguide Φ 11.6;other ports: WR42、WR28

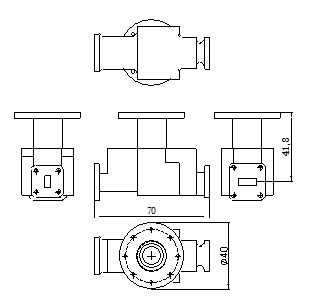

6.         Structure:

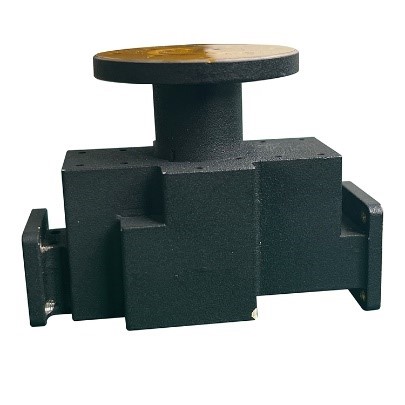

K/Ka band different frequency OMT

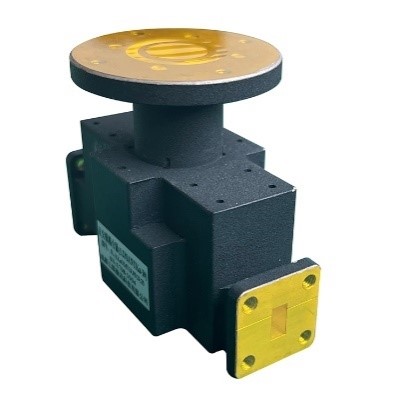

K/Ka band different frequency OMT
