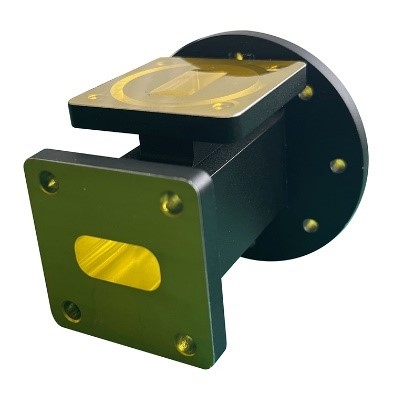

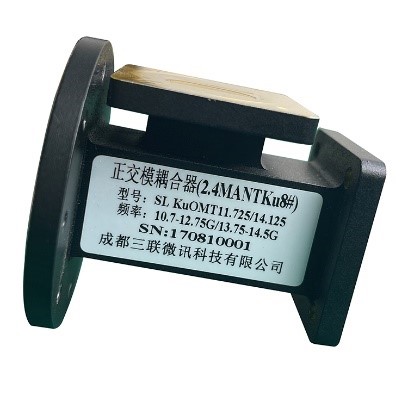

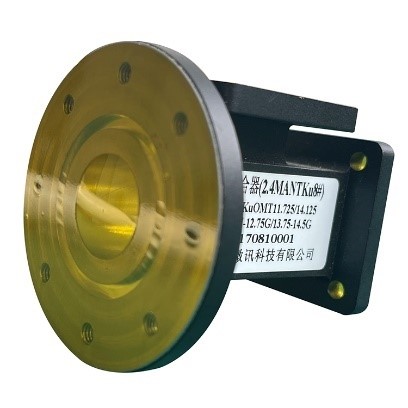

Ku band different frequency OMT(type B)
Ku band different frequency OMT(type B).pdf
Ku band different frequency OMT(type B)
【Product introduction】:
Features: low insertion loss, great isolation.
【Technical indicators】:
1. Working frequency: RX: 10.7～12.75GHz
TX: 13.75～14.5GHz
2. VSWR: 1.15:1 MAX
3. Insertion loss: 0.15dB MAX
4. Isolation: 40dB MIN
5. Interface: Common port: C19.05; RX: WR75; TX:WR75
6. Structure:
Ku band different frequency OMT(type B)
Ku band different frequency OMT(type B)
