Ku band same frequency inphase OMT(type B-D)

【Product introduction】:

Features: low insertion loss, great isolation and phase coherence.

【Technical indicators】:

1. Working frequency: 14.0~14.5GHz

2.  VSWR: 1.15:1 MAX

3.  Insertion loss: 0.15dB MAX

4.  Isolation: 35dB MIN

5.  Phase coherence: ±3° MAX

6.  Interface: circular waveguideΦ15.09(Common port);Waveguide WR75/WR62

7.  Structure:

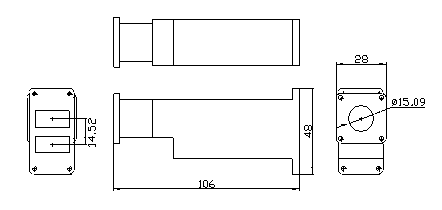

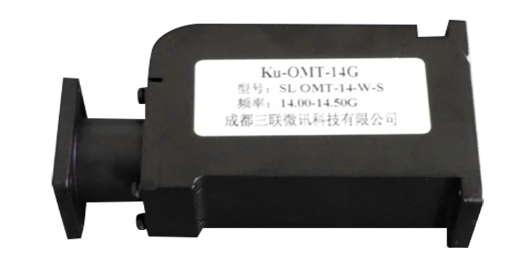

Ku Band same frequency inphase OMT(type B)

Ku Band same frequency inphase OMT(type B)

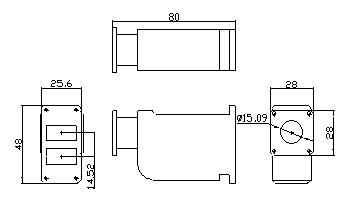

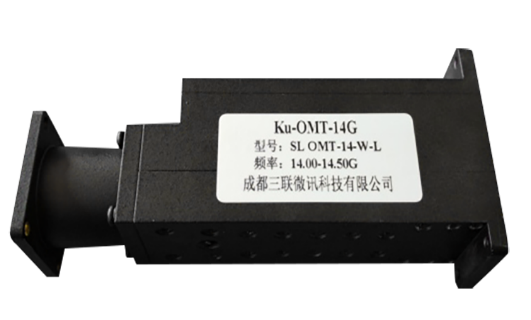

Ku Band same frequency inphase OMT(type C)

Ku Band same frequency inphase OMT(type C)

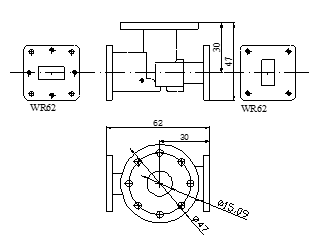

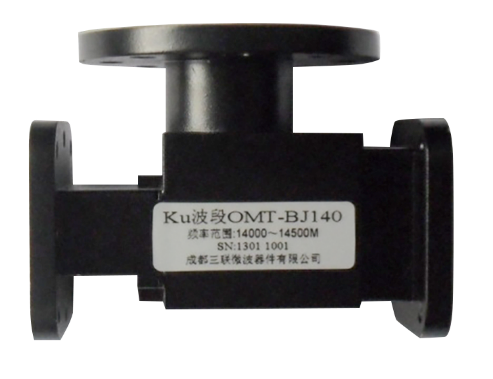

Ku Band same frequency inphase OMT(type C)

Ku Band same frequency inphase OMT(type C)
