Ku Band Satellite Communication Duplexer (Type C)
【Product introduction】:
Features: low insertion loss, great isolation, compact structure.
【Technical indicators】:
1. Center frequency: RX: 12.0~13.0GHz
TX: 15.0~15.35GHz
2. VSWR: 1.25:1 MAX
3. Insertion loss: 0.3dB MAX
4. Isolation: TX/RX: 90dB MIN
RX/TX: 62dB MIN
5. Interface: RX: WR75, TX: WR62

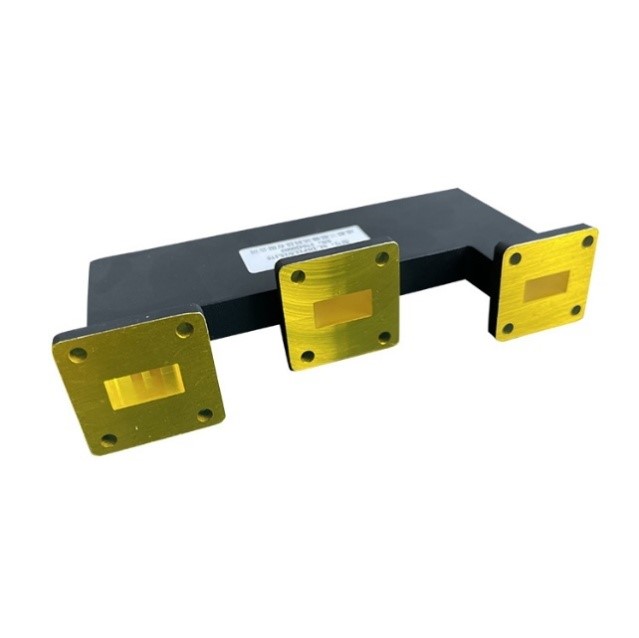

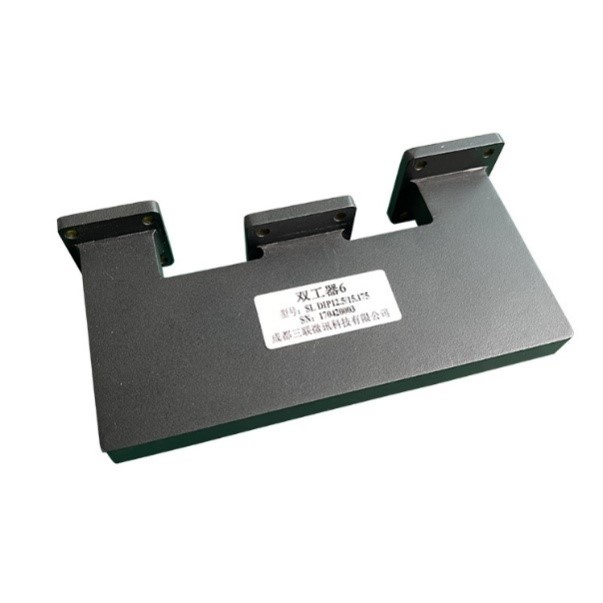

6. Structure:
Ku Band Satellite Communication Duplexer (Type C)
Ku Band Satellite Communication Duplexer (Type C)
