Ku Band Satellite Communication Duplexer (Type A)

【Product introduction】:

Features: High power capacity, great rejection.

【Technical indicators】:

1.         Working frequency:  RX: 10.70~12.75GHz

                                              TX: 13.75~14.50GHz

2.         VSWR: 1.25:1 MAX

3.         Insertion loss: RX: 0.60dB MAX; TX: 0.45dB MAX

4.         Isolation: TX/RX: 110dB MIN

             RX/TX: 90dB MIN

5.         Power Capacity: 2KW(Each TX port with 1KW input power)

6.         Interface: Common port: Φ19.05 circular waveguide;Other ports: WR75

7.         Structure：

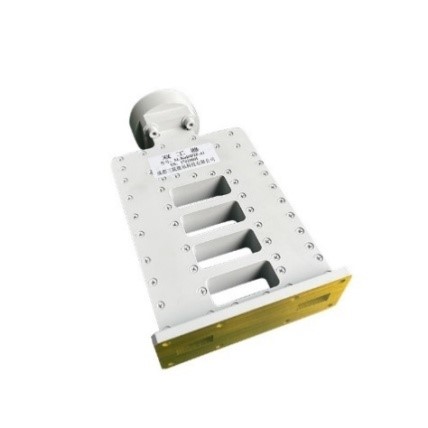

Ku Band Satellite Communication Duplexer (Type A)

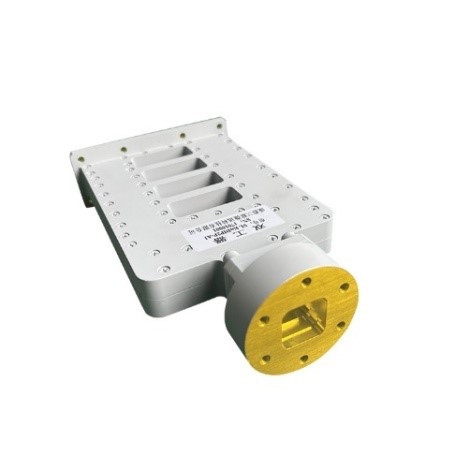

Ku Band Satellite Communication Duplexer (Type A)
