Ku Band Satellite Communication Duplexer

【Product introduction】:

Contains two duplexers. Features:  compact structure, low insertion loss, in phase, great rejection.

【Technical indicators】:

1.       Working frequency:  RX: 12.0~13.0GHz

          TX: 14.0~14.5GHz

2.       VSWR: 1.22:1 MAX

3.       Insertion loss: 0.45dB MAX

4.       Isolation: TX/RX 90dB MIN

        RX/TX 50dB MIN

5.       Phase coherence:  ±3° MAX

6.       Interface:  Non-standard WR75

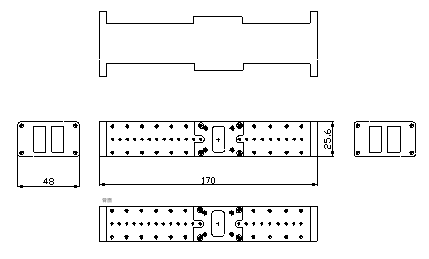

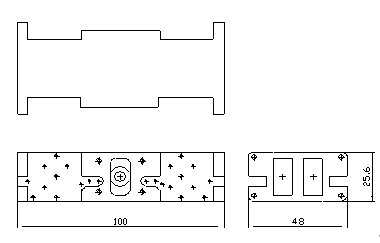

7.       Structure:

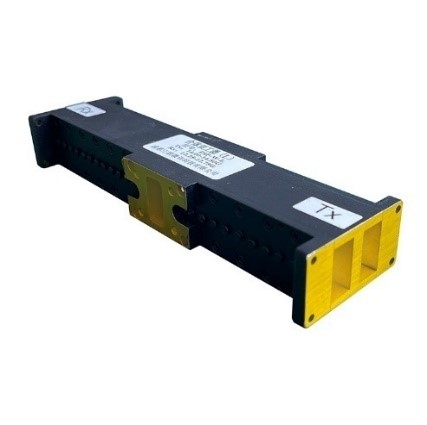

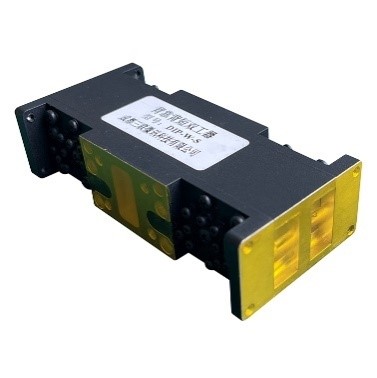

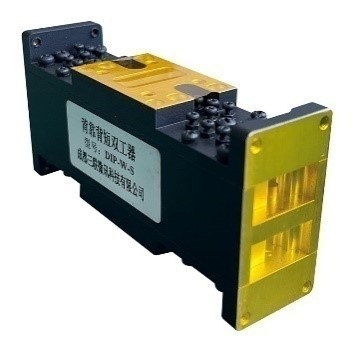

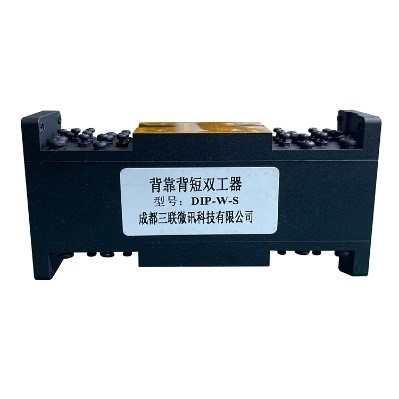

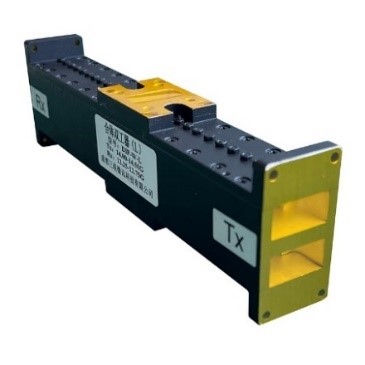

Ku Band Satellite Communication Duplexer

Ku Band Satellite Communication Duplexer

Ku Band Satellite Communication Duplexer

   Ku Band Satellite Communication Duplexer
