Ku/K band LHCP/RHCP/Horizontal polarization/Vertical polarization sub system

【Product introduction】:

Including K/Ku splitter, Ku combiner, K/Ku-OMT, circular polarizer, 180º phase shifter, rotary joint, K/Ku low-pass filter and connecting waveguide, K/Ku- LNB.

Features: wide band, low insertion loss, good rejection.

Function: combining the frequencies of the two bands of Ku/K, or separating them from the antenna port, the circular polarization/linear polarization working mode can be switched freely.

【Technical indicators】:

1. Working frequency: Ku band, K band

2. Polarization mode: Circular polarization/linear polarization, freely switchable

3. VSWR: 1.35:1 MAX

4. Insertion loss: 1.20dB MAX

5. circular polarizability: 1.20dB MAX

6. Isolation: Ku/K: 80dB MIN

K/Ku: 60dB MIN

K orthogonal isolation: 40.0dB MIN

Ku orthogonal isolation: 40.0dB MIN

7. Structure:

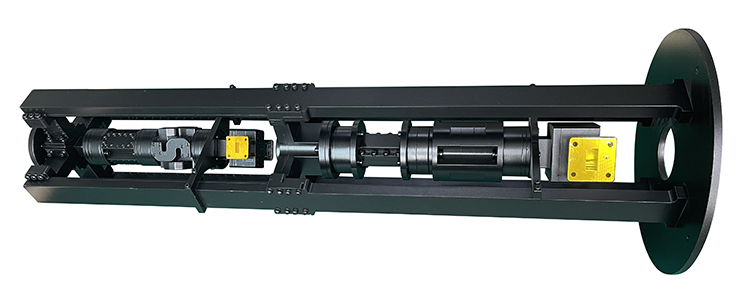

Ku/K LHCP/RHCP/Horizontal polarization/Vertical polarization sub system

8．Principal schematic

Ku/K LHCP/RHCP/Horizontal polarization/Vertical polarization sub system
