Ku/K/Ka multi band orthogonal mode components (type A~D)

【Product introduction】:

Including splitter, combiner, filter, connecting waveguide.

Features: wide bandwidth, low insertion loss, small size.

Function: Separate or combine Ku/K/Ka satellite communication T/R signal.

Linear polarization T/R mode:  Same/different frequency;1/2 polarization (by adding OMT)

Circular polarization T/R mode:  Same/different frequency; LHCP/RHCP polarization (by adding circular polarizer & OMT).

【Technical indicators】:

1. Working frequency: Ku band: 12.25～12.75GHz (RX);14～14.5GHz (TX)

   K/Ka band: 19.6～21.2GHz (RX);29.4～31.0GHz (TX)

2. VSWR: 1.25:1 MAX

3. Insertion loss: 0.35dB MAX @ Ku/K/Ka

4. Isolation: K/Ku: 60dB MIN

Ka/Ku: 40dB MIN

Ku Orthogonal mode isolation: 40dB MIN

5. Phase difference: Ku: ±4° MAX; K/Ka: ±4° MAX

6. Structure:

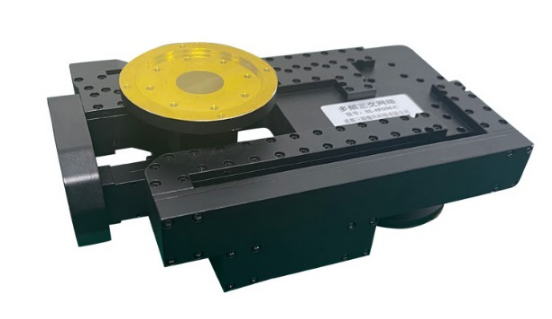

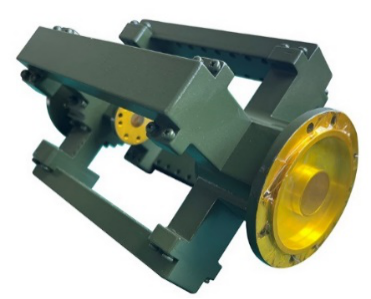

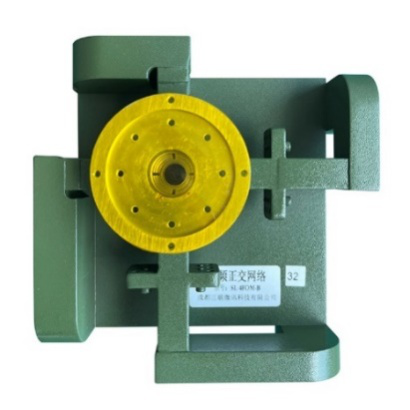

Ku/K/Ka multi band orthogonal mode component (type A)

Ku/K/Ka multi band orthogonal mode component (type A)

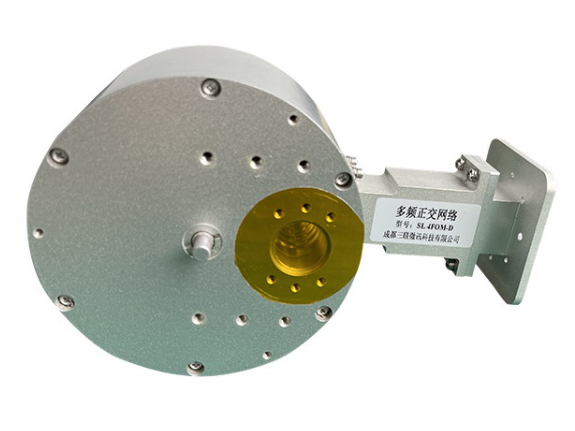

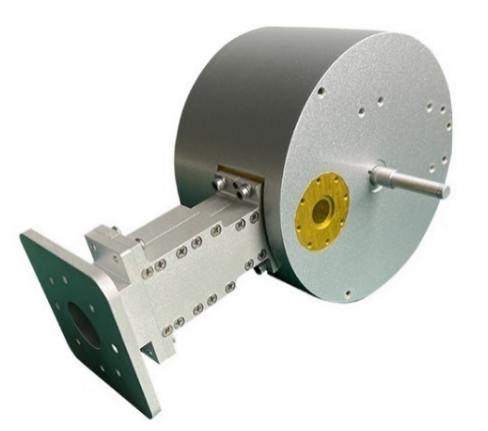

 Ku/K/Ka multi band orthogonal mode component (type B)

Ku/K/Ka multi band orthogonal mode component (type B)

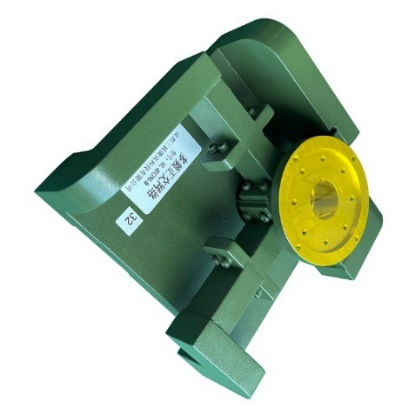

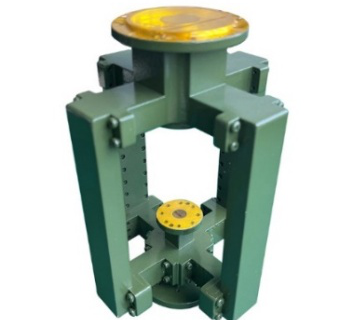

Ku/K/Ka multi band orthogonal mode component (type C)

Ku/K/Ka multi band orthogonal mode component (type C)

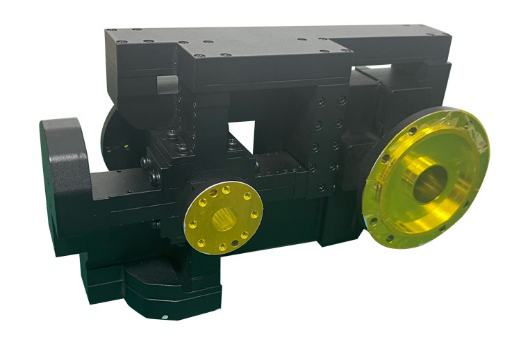

Ku/K/Ka multi band orthogonal mode component (type D)

Ku/K/Ka multi band orthogonal mode component (type D)
