K/Ka band circular polarization component

【Product introduction】:

Including circular polarizer, OMT, filter.

Features: High power capacity, great rejection.

Function: Transceiver duplex, circularly polarized wave transmission.

【Technical indicators】:

1. Working frequency: K: 20.2～21.2GHz; Ka: 28.5～29.5GHz

2. VSWR: 1.25:1 MAX

3. Insertion loss: 0.5dB MAX

4. Circular polarizability: 0.5～1.2dB

5. Isolation: TX/RX: 110dB MIN

    RX/TX: 35dB MIN

6. Transmit power: 150W

7. Interface: circular waveguideΦ10.3;WR42(K band);WR28(Ka band)

8. Structure:

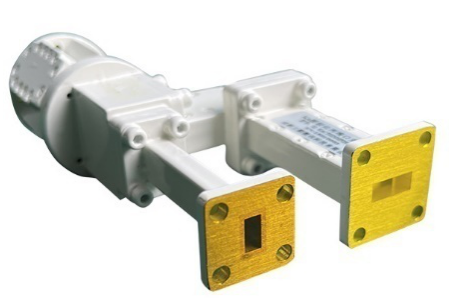

K/Ka band circular polarization component

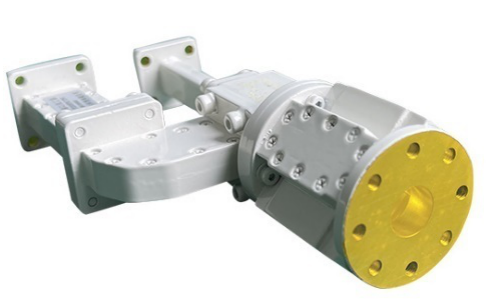

K/Ka band circular polarization component
