Ku Band Waveguide Rotary Joint I

Ku Band Waveguide Rotary Joint I.pdf

Ku Band Waveguide Rotary Joint I

【Product introduction】:

Features: low insertion loss, stable structure.

【Technical indicators】:

1. Working frequency: 14.0～14.5GHz

2. VSWR: 1.2:1 MAX

3. Insertion loss: 0.2dB MAX

4. Operating temperature: -55℃～+85℃

5. Interface: WR75

6. Structure:

Ku Band Waveguide Rotary Joint I.png

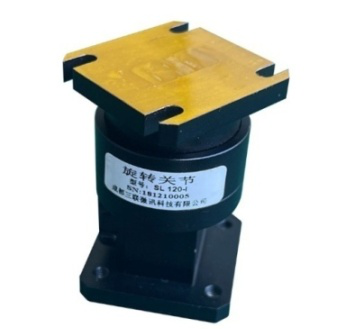

Ku Band Waveguide Rotary Joint I

Ku Band Waveguide Rotary Joint I 1.pngKu Band Waveguide Rotary Joint I 2.png

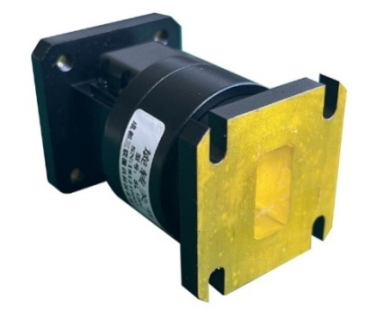

Ku Band Waveguide Rotary Joint I
