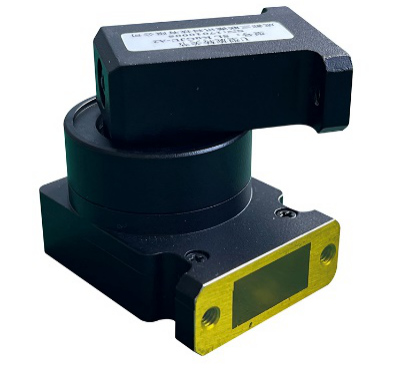

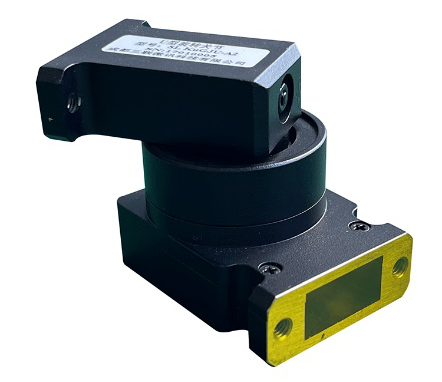

Ku Band U Type Waveguide Rotary Joint
Ku Band U Type Waveguide Rotary Joint.pdf
Ku Band U Type Waveguide Rotary Joint
【Product introduction】:
Features: low insertion loss, stable structure.
【Technical indicators】:
1. Working frequency: 14～14.5GHz
2. VSWR: 1.20:1 MAX
3. Insertion loss: 0.2dB MAX
4. Operating temperature: -55℃～+85℃
5. Interface: WR75 Non-standard flange
6. Structure:
Ku Band U Type Waveguide Rotary Joint
Ku Band U Type Waveguide Rotary Joint
