K band 180° phase shifter



K band 180° phase shifter.pdf

K band 180° phase shifter

【Product introduction】:

It is used for polarization tracking of satellite communication in-motion system.

 Features: low insertion loss, low phase fluctuation.

【Technical indicators】:

1.         Working frequency: 17.70～21.20GHz

2.         VSWR: 1.17:1 MAX

3.         Insertion loss: 0.25dB MAX

4.         Phase fluctuation: 180±3°

5.         Interface: circular waveguideΦ11.60

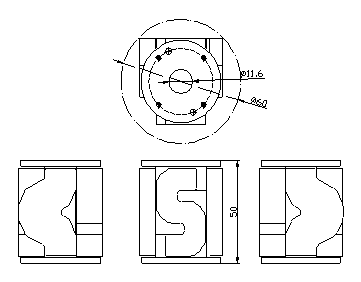

6.         Structure:


K band 180°phase shifter


K band 180°phase shifter
