Ku band adjustable phase shifter


Ku band adjustable phase shifter.pdf

Ku band adjustable phase shifter

【Product introduction】:

It is used to compensate the phase difference between the uplink channel and the downlink channel of the satellite communication in-motion system. Features: Phase adjustable.

【Technical indicators】:

1.  Working frequency: 12.25～12.75GHz

2.   VSWR: 1.15:1 MAX

3.   Insertion loss: 0.15dB MAX

4.   Phase adjustable range: 30° MAX

5.   Interface: WR75

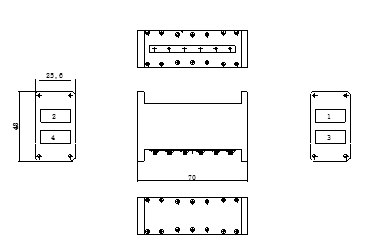

6.    Structure:

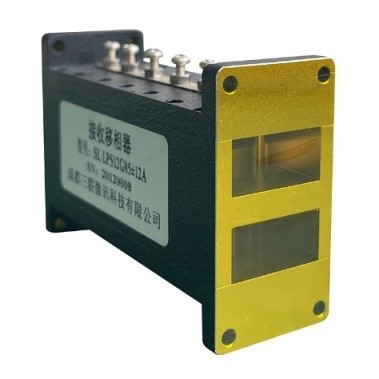

Ku band adjustable phase shifter

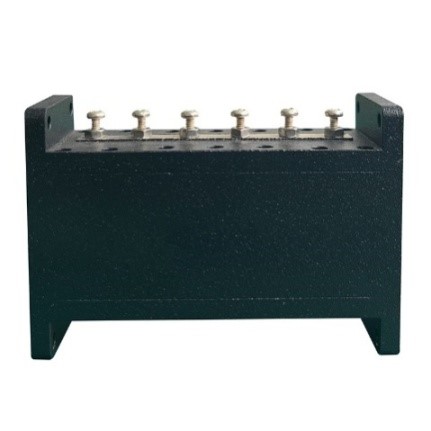

Ku band adjustable phase shifter
