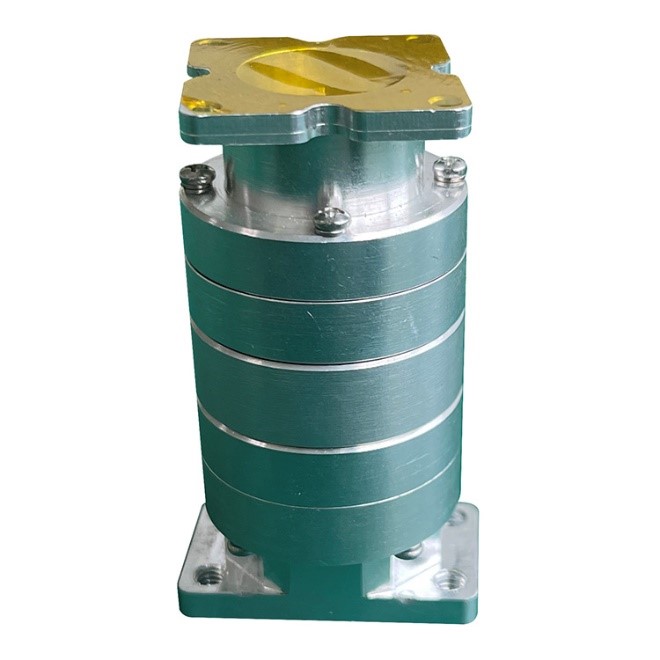

Ku Band I Type circular Polarization Tracking Rotary Joint
Ku Band I Type circular waveguide Polarization Tracking Rotary Joint.pdf
Ku Band I Type circular waveguide Polarization Tracking Rotary Joint
【Product introduction】:
Features: low insertion loss, stable structure.
【Technical indicators】:
1. Working frequency: 12.25～12.75G
2. VSWR: 1.20:1 MAX
3. Insertion loss: 0.3dB MAX
4. Operating temperature: -40℃～+70℃
5. Interface: Non-standard flange

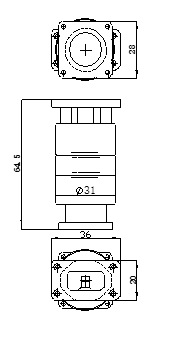

6. Structure:
Ku Band I Type/circular waveguide Polarization Tracking Rotary Joint
