Ka Band Bandpass Filter

Ka Band Bandpass Filter.pdf

Ka Band Bandpass Filter

【Product introduction】:

Features: low insertion loss, great rejection without tuning screws.

【Technical indicators】:

1.       Working frequency: 30.50~31.00GHz

2.       VSWR: 1.3:1 MAX

3.       Insertion loss: 0.5dB MIN

4.       Rejection: 70dB MIN@ 0~21.10GHz

5.       Interface: WR34

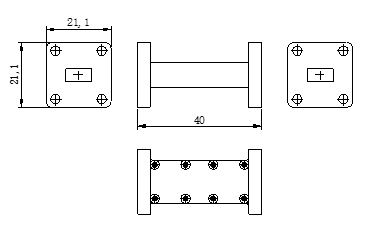

6.       Structure:

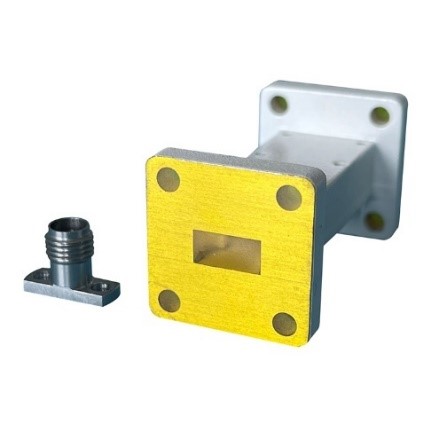

Ka Band Bandpass Filter


Ka Band Bandpass Filter
