K Band Bandpass Filter

K Band Bandpass Filter.pdf

K Band Bandpass Filter

【Product introduction】:

Features: low insertion loss, great rejection without tuning screws.

【Technical indicators】:

1.       Working frequency: 17.7~22.2GHz

2.       VSWR: 1.20:1 MAX

3.       Insertion loss: 0.2dB MIN

4.       Rejection: 80dB MIN @ 27.5~31.5GHz

5.       Interface: WR42

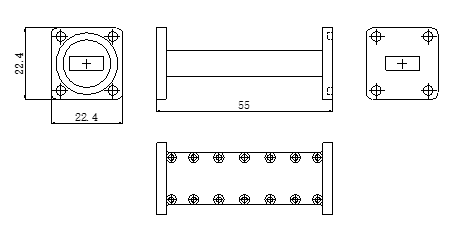

6.       Structure:

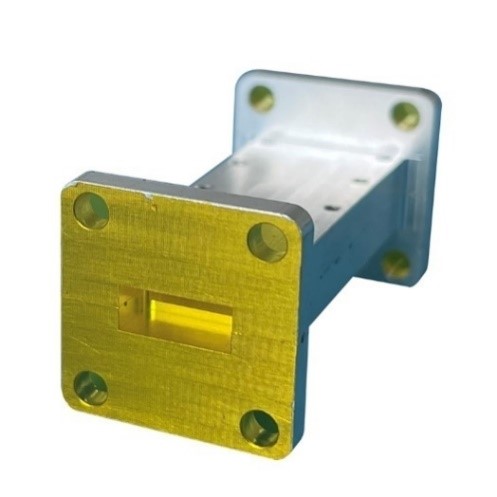

K Band Bandpass Filter

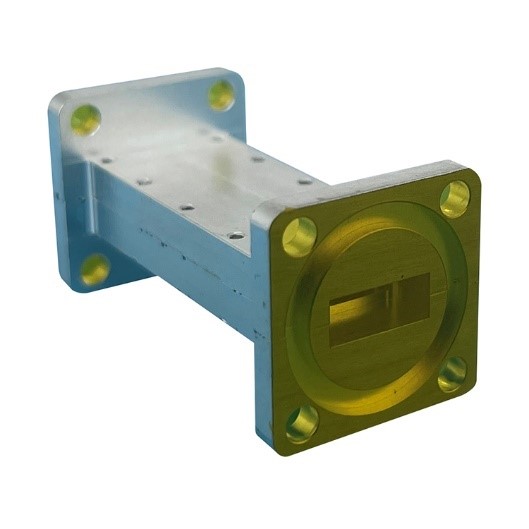

K Band Bandpass Filter
