X band High Altitude Waveguide Bandpass Filter

X band High Altitude Waveguide Bandpass Filter.pdf

X band High Altitude Waveguide Bandpass Filter

【Product introduction】:

Features: High altitude, high power, sealed, without tuning screws.

【Technical indicators】:

1.         Working frequency: 9.55~10.30GHz

2.         VSWR:  1.20:1 MAX

3.         Insertion loss:  0.5dB MAX

4.         Rejection:  30dB MIN@9.38GHz

5.         Power Capacity: 200W(average power)

6.         Air tight requirements:  inflate 0.12Mpa. reduce less than 0.01Mpa after 1hour.

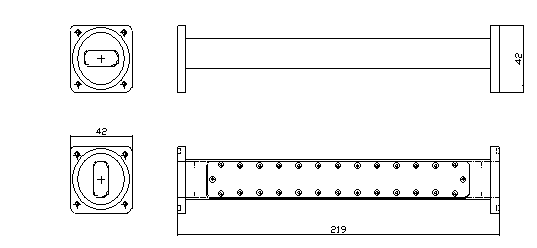

7.         Structure:

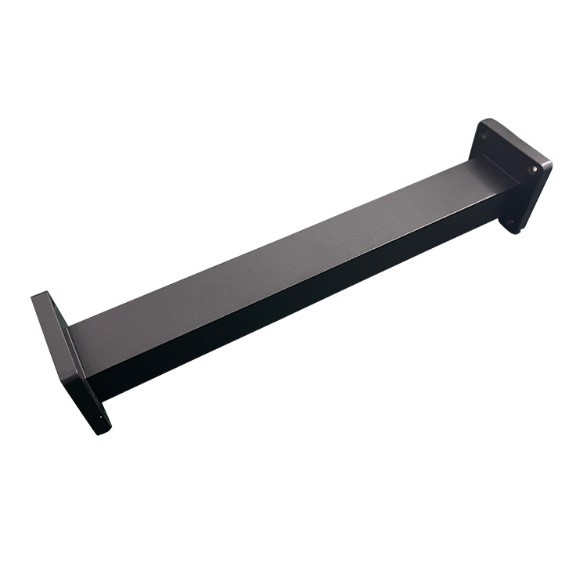

X Band High Altitude Waveguide Bandpass Filter

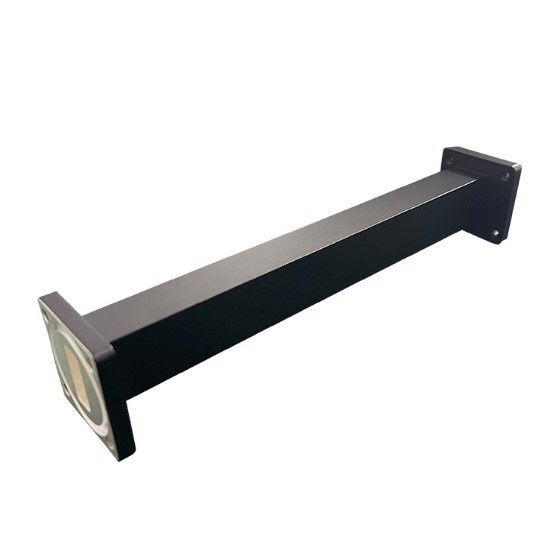

X Band High Altitude Waveguide Bandpass Filter
