Ku band same frequency inphase OMT(type A)
Ku band same frequency inphase OMT(type A).pdf
Ku band same frequency inphase OMT(type A)
【Product introduction】:
Features: low insertion loss, great isolation and phase coherence.
【Technical indicators】:
1. Working frequency: 12.25~12.75GHz
2. VSWR: 1.12:1 MAX
3. Insertion loss: 0.15dB MAX
4. Isolation: 35dB MIN
5. phase coherence: ±3° MAX
6. Interface: circular waveguide Φ17.42(Common port);WR75(Other ports)

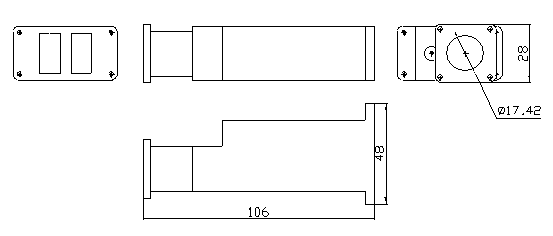

7. Structure:

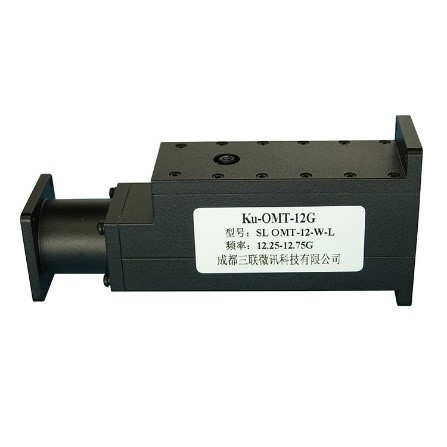

Ku Band same frequency inphase OMT(type A)

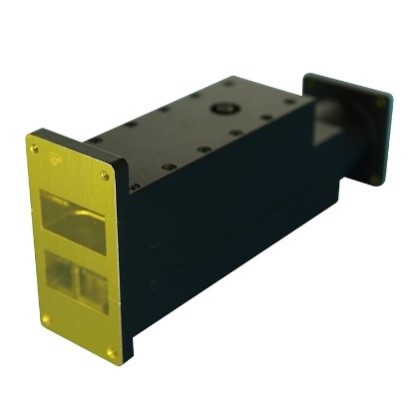

Ku Band same frequency inphase OMT(type A)
