Ku Band Satellite Communication Duplexer (Type B)

【Product introduction】:

Features: great rejection, small phase variation.

【Technical indicators】:

1.         Working frequency: RX: 12.25~12.75GHz

          TX:14.00～14.50GHz

2.         VSWR: 1.22:1 MAX

3.         Insertion loss: 0.40dB MAX

4.         Isolation: TX/RX: 90dB MIN

            RX/TX: 62dB MIN

5.         phase coherence: ±3° MAX

6.         Interface: Common port: Non-standard WR75;

            RX:  Non-standard WR75 flange;TX:  SMA-K

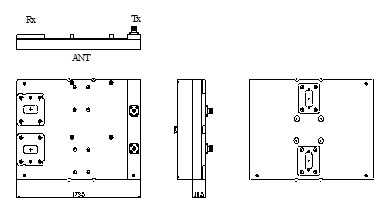

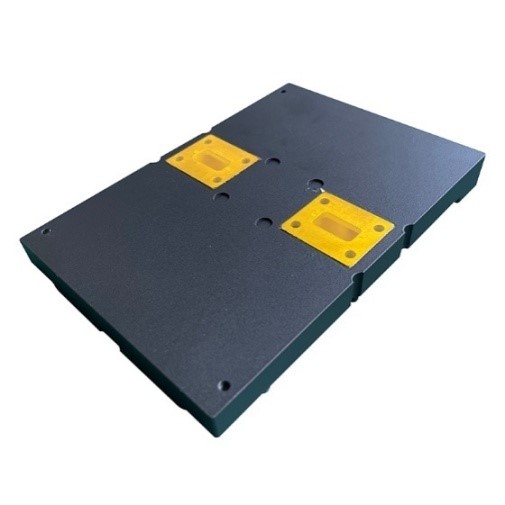

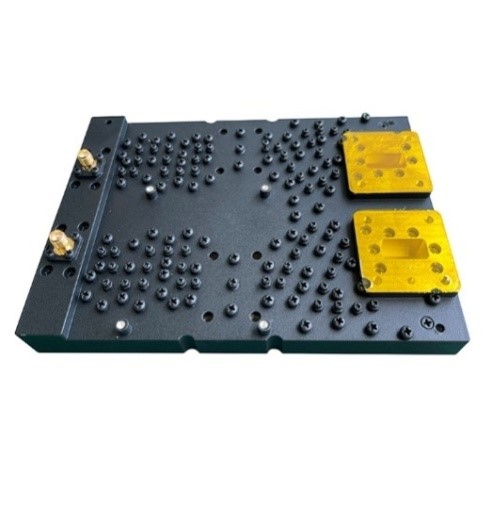

7.         Structure:

Ku Band Satellite Communication Duplexer (Type B)

Ku Band Satellite Communication Duplexer (Type B)
